One thing that I’ve heard mentioned on this forum is the lack of ‘numbers’ surrounding the performance difference between OEM front end setup and the ‘cup racer’ front end setup. The 'cup racer' setup consists of correcting roll centre and bump steer characteristics by:
- Raising the front subframe
- Lowering the connecting point of the front suspension arm
I'm not going to repeat other articles about roll centre correction
suspensionsecrets.co.uk
pinderwagen.com
www.racecar-engineering.com
This is achieved in the Clio by:
- New 'EE' brackets (named after the diagram used in the 2008 Clio Cup chassis handbook). What we refer to as the 'EE' support is named because it connects Point E (wishbone ball joint) to Point E' (lower swivel hub rotation point).
- The motorsport 'EE' support has both a lower and offset connection point compared to the road car version which widens track, increases caster and camber
- Longer driveshafts are needed due to wider track from moving the bottom of the swivel hub outwards
- Adjustable anti-rotation links are needed to match the new wishbone position.
The 'cup racer' setup also corrects bump steer.
en.wikipedia.org
low-offset.com
suspensionsecrets.co.uk
This is achieved by:
- Raising the steering rack by adding a spacer beneath

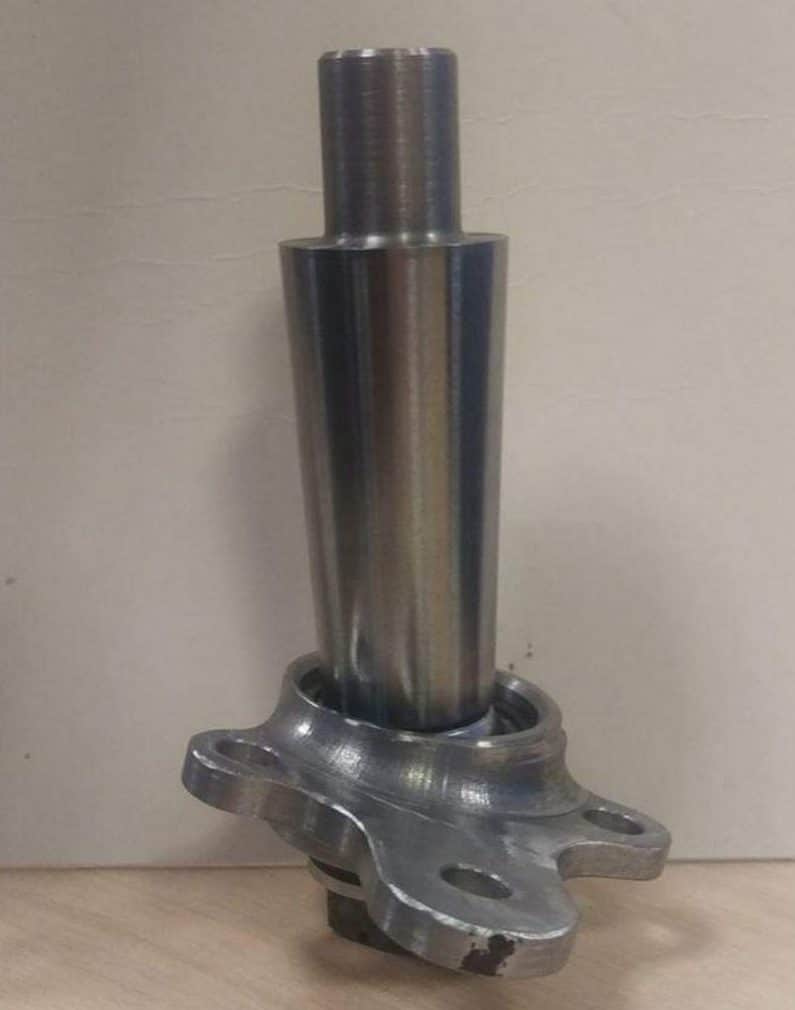

- Lowering the connection point of the TRE to the swivel hub by adding a spacer above.
- The TRE need extending to deal with the wider track
It used to be that you could get this kit by using Renault parts but these are getting scarce. Pure Motorsport (PMS) have developed their own version:
You'll have seen from my project thread that I've had all this done.
First of all, the subjective, non-numerical butt-dyno feedback. It makes a noticeable difference for the better. Front end turn in grip is increased, understeer is virtually eliminated, body roll and weight transfer feel significantly reduced. The car feels much more eager to turn into a corner and keep the desired line. That said, this is all subjective and I would say that given that it probably cost me two grand all in. I’m not gonna say it’s shit.
However, I also have the benefit of having recorded extensive data via 10Hz GPS two years in a row and I have two data sets that can compare.
Disclaimer(s):
Sample 1
Nurburgring Nordschleife
1st July 2022
Bridge to Gantry (BTG) 08m 44s
OEM EE brackets
OEM driveshafts
OEM steering rack and height
Solid subframe with +5mm height (Josh Wheeler solid mounts)
MRF ZTR Tyres (new) 28psi hot
Gaz Gold set at 20F 18R
PMS rear beam strengthening kit
3.1 degrees of camber
Slight toe out on the front
Polybushed front suspension arms.
Dry track, sunny conditions, approx. 16:00
Sample 2
Nurburgring Nordschleife
29th June 2023
Bridge to Gantry (BTG) 08m 34s
PMS EE brackets
PMS extended driveshafts
PMS extended track rod ends
PMS steering rack spacers (approx 9mm)
Solid mounted subframe with +5mm height
Total of 16mm roll centre correction
MRF ZTR (same set as 2022), scrubbed, 28psi hot
Gaz Gold set at 20F 18R
PMS rear beam strengthening kit 3.1 degrees of camber
Parallel toe
Solid PMS bushed front arms.
Dry track, sunny conditions, approx. 18:00.
The two data samples are relatively close in terms of time of year and time of day. Interestingly, Sample 1 was a flying lap start on a TD so my starting speed at Bilstein Bridge at 111.3mph, whereas Sample 2 (the faster lap) was taken from a TF session meaning it was a standing start from the barriers, at 78.1mph.
I picked these corners as ‘landmarks’ throughout the course of a lap. If anyone wants to do a deeper dive into the data then I’ll happy make them available in .CSV format.
Hatzenbach
Apex Speed 2022 - 77.1mph
Apex Speed 2023 - 76.1mph
Overall Result - 2023 apex speed 1mph slower
Flugplatz (1st Apex)
Apex Speed 2022 - 100.7mph
Apex Speed 2023 - 101.0mph
Overall Result - 2023 apex speed 0.4mph faster
Flugplatz (2nd Apex)
Apex Speed 2022 - 100.6mph
Apex Speed 2023 - 103.7mph
Overall Result - 2023 apex speed 3.1mph faster. In 2023 I was taking Flugplatz flat in 5th whereas in 2022 I recall having a security lift. This additional speed is then carried all along the next fast section leading to Schwedenkreuz.
Schwedenkreuz (arrival speed)
Top Speed 2022 - 122.0mph
Top Speed 2023 - 124.3mph
Overall Result - 2023 arrival speed 2.3mph faster, probably due to the gains found at the previous corner by taking Flugplatz flat out and not lifting.
Schwedenkreuz (apex speed)
Apex Speed 2022 - 107.4mph
Apex Speed 2023 - 89.6mph
Overall result - 2023 apex speed 17.8mph slower. I suspect this shows that I was either catching slower traffic over the crest or being caught myself and having to move out of the way. Despite my slower apex speed over the crest on this lap, this was the faster overall lap.
Foxhole Compression
Apex Speed 2022 - 115.2mph
Apex Speed 2023 - 126.4mph
Overall Result - 2023 apex speed at the compression 11.2mph faster, clearly I found my big boy pants in 2023 and I was taking the Foxhole flat in 5th.
Miss Hit Miss (Apex Speed)
Apex Speed 2022 - 77.4mph
Apex Speed 2023 - 83.8mph
Miss Hit Miss (Exit Speed)
Exit Speed 2022 - 95.7mph
Exit Speed 2023 - 100.9mph
Overall Result - big improvements in 2023 through this section, minimum apex speed 6.4mph faster which translates to a peak exit speed 5.2mph faster.
Ex-Mühle (Entry)
Entry Speed 2022 - 78.7mph
Entry Speed 2023 - 82.2mph
Ex-Mühle (Exit)
Exit Speed 2022 - 56.6mph
Exit Speed 2023 - 64.9mph
Overall Result - again decent gains through here in 2023, entry speed 3.5mph faster leading to exit speeds 8.3mph faster. This is important as it leads to the Lauda Links. I’m told that I could be even faster through this section as I have a dab of the brakes just before corner entry but I’m told it can be taken flat in a Clio. Perhaps one to practise next year.
Lauda Links
Peak Apex Speed 2022 - 86.8mph
Peak Apex Speed 2023 - 103.5mph
Overall Result - I don’t think this tells the full story on the 2022 lap, I suspect again I was either behind traffic or moving over for others.
Mutkurve
Peak Apex Speed 2022 - 90.3mph
Peak Apex Speed 2023 - 100.2mph
Overall Result - almost 10mph quicker in 2023, this is one of the corners that I wanted to work on. By taking a wider entry using the rumble strips on the right on entry and letting the car run wide right on exit I was able to take this flat, which is a bit scary as it’s a 5th gear blind left hander. Mutkurve is translated as ‘courage curve’ for good reason.
Hohe Acht (Left Hander)
Apex Speed 2022 - 74.7mph
Apex Speed 2023 - 75.0mph
Hohe Acht (Right Hander)
Apex Speed 2022 - 74.7mph
Apex Speed 2023 - 76.1mph
Overall Result - only marginally quicker in 2023
Wipperman
Apex Speed 2022 - 82.6mph
Apex Speed 2023 - 82.3mph
Overall Result - near as damn it the same
Pflanzgarten Jump
Jump Speed 2022 - 87.1mph
Jump Speed 2023 - 103.5mph
Overall Result - found my big boy pants again and took this flat in 4th in 2023 whereas I’ve never done that before and either had a dab of the brakes before the hump, or just a security lift. I can’t really put this down to the car, this was just having a bit more confidence that the car would deal with it.
Pflanzgarten 2 (drop away)
Peak Speed 2022 - 100.5mph
Peak Speed 2023 - 104.5mph
Overall Result - 4mph quicker in 2023, could be that I’m arriving quicker because I’m carrying more speed through the preceding corner.
Galgenkopf 1
Apex Speed 2022 - 77.2mph
Apex Speed 2023 - 85.8mph
Overall Result - 8.6mph quicker in 2023, I was lifting in 4th whereas beforehand I was braking a little to scrub some speed off.
All this translates to a lap that was 10 seconds faster overall. Whether this is to do with the new front end of the car I don’t know, but looking at this I’d say that I am a little faster here and there in general. The largest gains seem to come from the fast stuff where I have more confidence to either turn a lift into a flat out section, or turn a previous dab of the brakes into just a lift.
Of course, I’m drawing conclusions from data that may or may not be true, so feel free to debate and discuss.
I've been asked whether it is worth it. Overall it's an expensive upgrade and chances are you'll need to replace things (I replaced track rod ends, a swivel hub ball joint and a damaged ABS sensor). You'll also need the geometry redoing. It has made a difference, so if you have the money it definitely changes the behaviour of the car for the better, but value is determined by your own situation.
